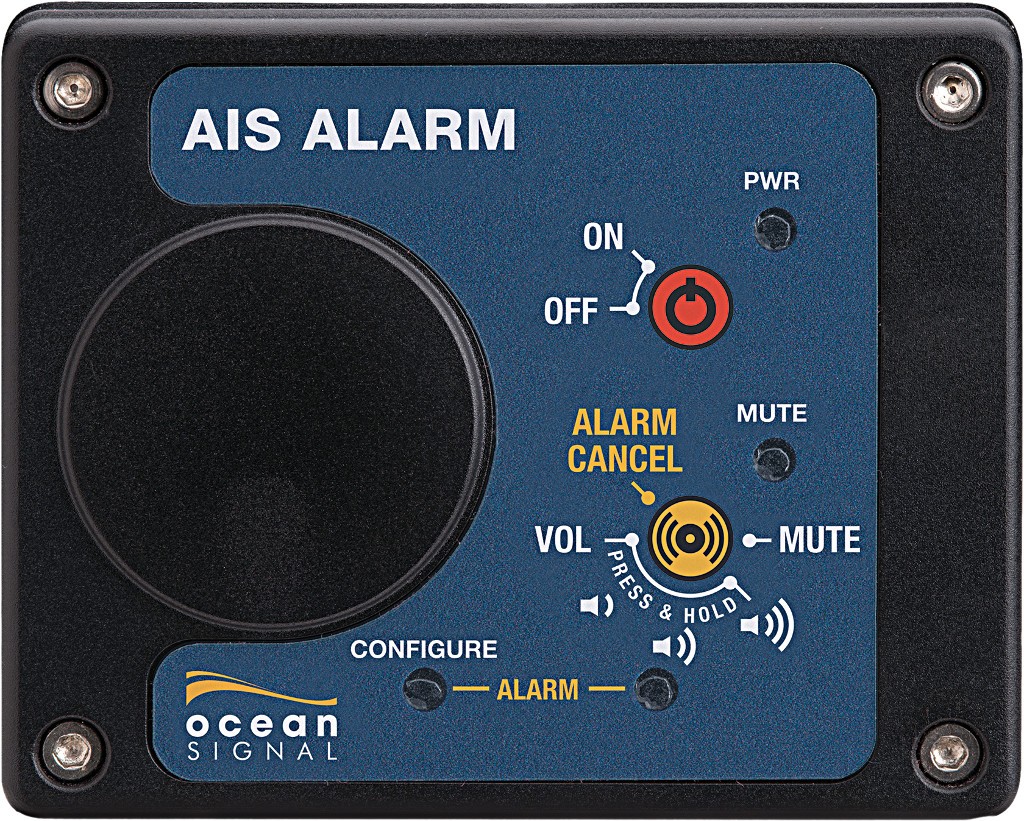

AIS ALARM BOX

Your Audible Alert to Rescue

  • Panel or bracket mount Panel or bracket mount
  • Detects AIS MOB and AIS SART devices Detects AIS MOB and AIS SART devices
  • Waterproof (for external mounting) Waterproof (for external mounting)
  • Multiple tones to identify source Multiple tones to identify source
  • Programmable with up to 30 individual device MMSI numbers Programmable with up to 30 individual device MMSI numbers
  • Alarms on all received or specific targets Alarms on all received or specific targets
  • NMEA0183-HS (38400baud) input NMEA0183-HS (38400baud) input
  • NMEA through-port for easy integration NMEA through-port for easy integration
  • Supplied with power and USB cables Supplied with power and USB cables

AIS Alarm dimensions The AIS alarm box is designed to ensure that the moment any AIS MOB or AIS SART signal is received an 87dB audible alarm is sounded ensuring everyone on the vessel is alerted to a possible MOB or a crew in need of rescue. Its simple design, compact nature and use of NMEA 0183 means that integrating the AIS Alarm Box into your AIS receiver and existing network is straight forward.

The Ocean Signal AIS Alarm has the ability to be programmed by the user with up to 30 individual MMSI numbers, multiple tones to identify the source of the AIS signal (MOB or SART) as well as being waterproof to allow for external mounting.

The AIS Alarm Box  may be configured by the user to enter the up to 30 MMSI numbers to provide visual and audible alarms by downloading the software at the link below. An integrated relay option allows for connection to an external alarm or the vessel’s engine kill switch. The relay can be programmed to activate if required.

The Ocean Signal AIS Alarm has a rugged, waterproof exterior allowing for external
mounting, ensuring installation in any desired location for optimum impact.

Configure AIS Alarm

Whilst every effort has been made to ensure the information on this page is accurate, products and specifications may be changed without notice.


Images

Specifications

General

Power Supply
10.8 - 15.6 Volts DC
Audible Alarm
87dB at 1m

AIS Message Reception

NMEA-HS Input
38400Baud, !VDM
NMEA-HA Output
38400Baud, !VDM
Alarm Contacts
2 x 8Amps, 250V AC

Environmental

Temperature Range (Operational)
-15°C - +55°C
Waterproof
I metre depth
Dimensions
90mm x 72mm x 72mm
