E100/E100G

The SafeSea E100 & E100G EPIRBs have been designed and are engineered to meet the needs of all commercial, fishing and offshore recreational vessels.



The SafeSea E100 & E100G EPIRBS are discontinued

Categories: Discontinued

SafeSea EPIRBs operate in the 406MHz satellite band monitored by Cospas-Sarsat, the international satellite operator, ensuring a signal can be located wherever it is activated around the globe. SafeSea EPIRBs are also fitted with a 121.5MHz homing beacon and a high brightness LED strobe light for fast on-scene location.



The SafeSea E100G EPIRB benefits from a dedicated built-in GPS which sends a highly accurate position, greatly reducing search time.



With the SafeSea EPIRB battery operating life being the highest in the industry an Ocean Signal EPIRB keeps rescue services updated with your location for longer.



Features:



  • Choice of GPS and non-GPS models
    • E100G EPIRB incorporates a state of the art 50 channel GPS receiver for fast and accurate position acquisition

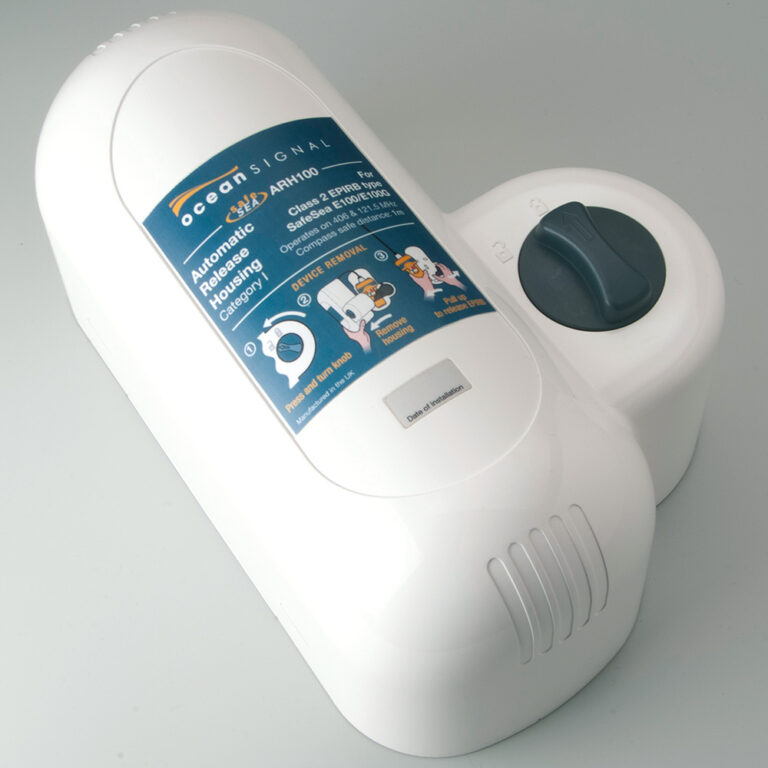

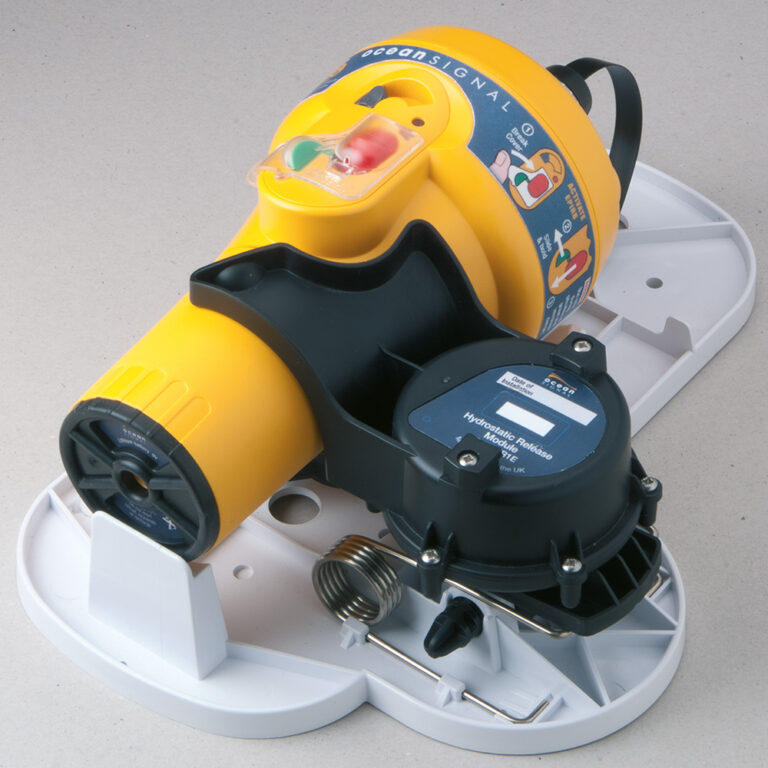

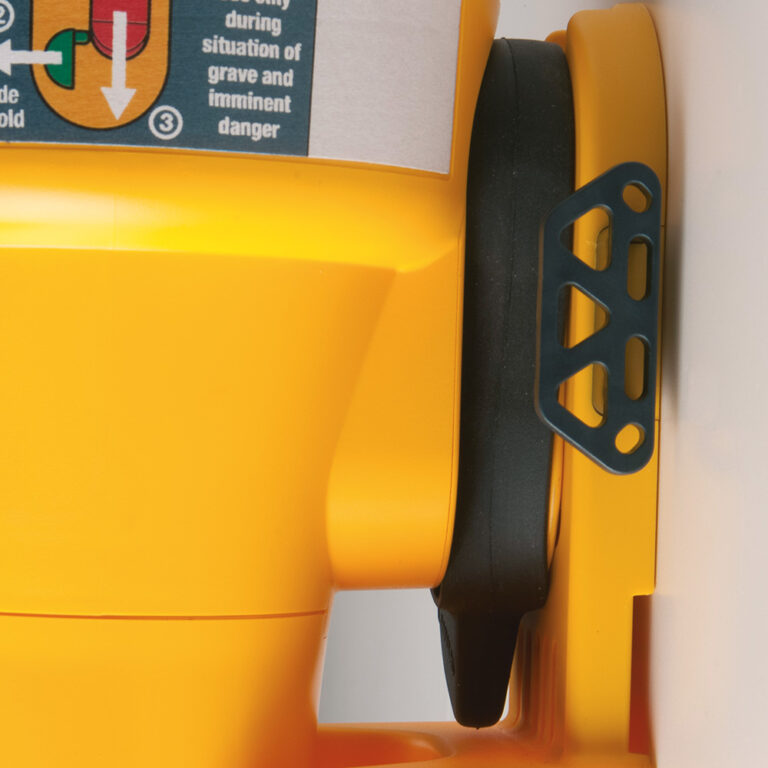

  • Manual bracket, manual release housing and float free housing options
  • Extreme battery life even at low temperatures
    • In excess of 96 hours operation
  • User replaceable batteries with five year replacement interval

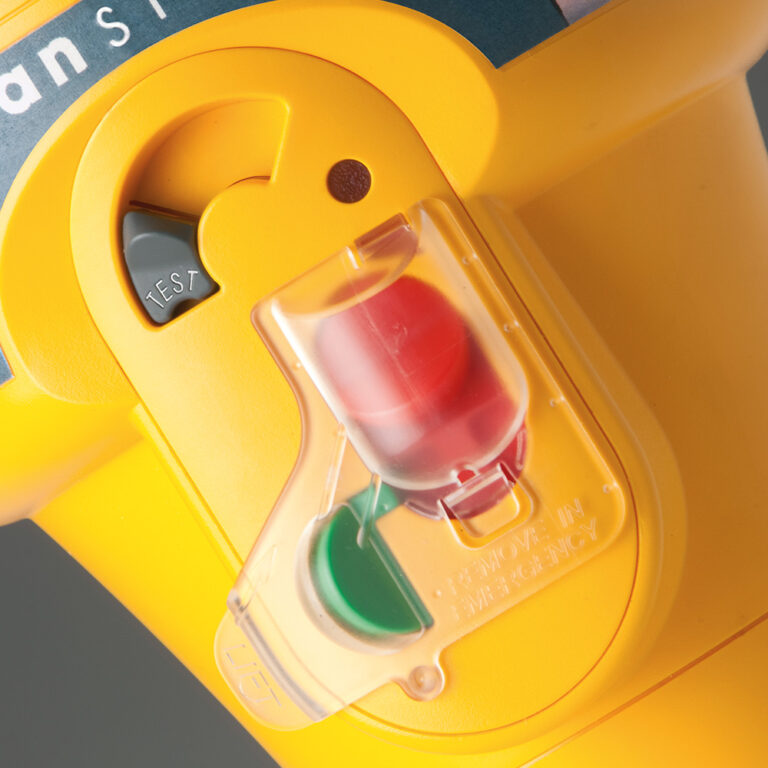

  • Intuitive operating controls protected from accidental activation
  • Meets or exceeds all International standards
  • Class 2 EPIRB (-20°C – +55°C) for general use
  • Non hazardous battery



Important:  Please read this service bulletin advising to carry out a self test on your SafeSea EPIRB.



Importante: Veuillez lire svp ce bulletin d’information qui recommande de faire un auto-test de la balise Ocean Signal E100/E100G de la gamme SafeSea.

406MHz Satellite Transmitter

Frequency

406.037MHz

Tolerance

±1kHz

Stability

2ppb/100ms

Output Power

5watts (nominal)

Modulation

Phase ±1.1radians (peak)

Emission Designator

16K0G1D

Encoding

Bi-phase L

Data Rate

400bps

Duration

520ms

121.5MHz Homing Beacon

Frequency

121.5MHz

Stability

±50ppm

Output Power

25-100mW PERP

Modulation

Swept Tone AM

Emission Designator

3K20A3X

Modulation Depth

85-100%

Sweep Range

400Hz – 1300Hz

Duty Cycle

35-55%

Low Duty Cycle Strobe Light

Light Type

Dual high intensity LEDs

Light Colour

White

Output Power

>0.75candela

Flash Rate

20-30 flashes per minute

GPS Receiver (E100G only)

Sensitivity Cold Start

-146dBm

Sensitivity Re-acquisition

-162dBm

Satellites channels tracked

50

GPS Antenna

Microstrip patch

Battery Type Lithium Primary

Chemistry

Manganese Dioxide (LiMnO2)

Operational Life (E100G Class 2 with LB2E)

typically 96hours

Replacement Interval

5years

Environmental

Operating Temperature Range

-20°C to +55°C

Storage Temperature Range

-30°C to +70°C

Automatic release depth

4metres (max)

Waterproof

>10metres at +20°C

Drop into water

20metres

Dimensions

Height (body)

212mm

Body Diameter (max)

106mm (113mm)

Standards and Approvals

Cospas-Sarsat

T.001 / T.007

IMO regulations

A.662(16); A.694(17); A.810(19)1; A.814(19)

International Standards Radio

IEC61097-2

International Standards EMC

IEC60945

European approval GMDSS

Marine Equipment Directive A.1/5.6

USA Standards RTCM

SC110

USA Standards FCC

CFR47 part 80.1101



When I register my EPIRB or PLB is the 0 in the 15 digit HEX ID (UIN) the number 0, or the letter O?

The HEX ID consists of the numbers from 0 to 9 and the letters from A to F only. The character 0 is the number zero.

Disposal of of EPIRBs and PLBs

Care should be taken when disposing of your PLB or EPIRB when it is no longer required. False alerts from discarded beacons can cause rescue authorities to expend much time and effort in locating discarded EPIRBs or PLBs that have accidentally activated. Please ensure that care is taken to completely deactivate the beacon and advise the registration authority that the beacon is no longer in service.

It is recommended to remove the battery from the beacon by removing the case lid. Dispose of the battery in accordance with local waste regulations. Please note that Ocean Signal beacons are not user serviceable and removing the lid will invalidate the warranty.
