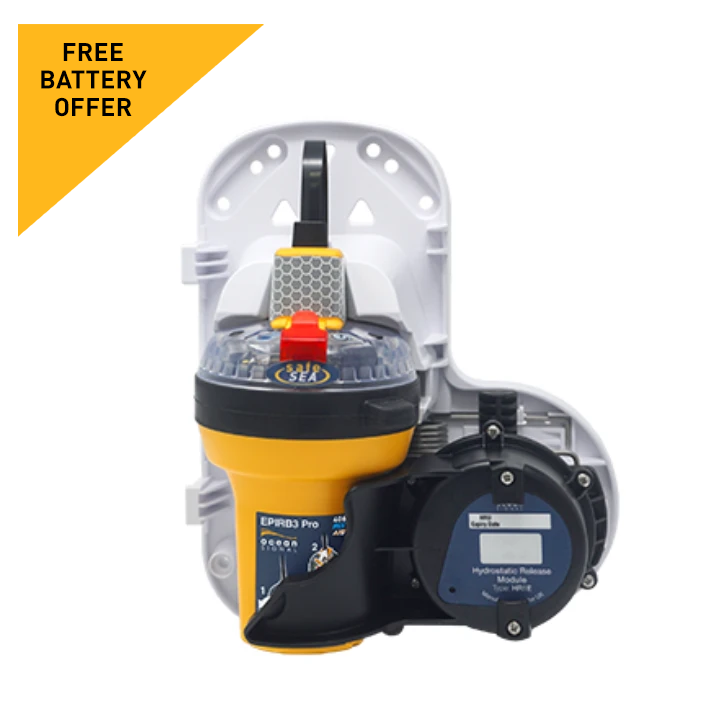

safeSEA EPIRB3 Pro

$974.95

The new Ocean Signal EPIRB3 Pro is a full featured 406 MHz global rescue beacon that comes with an auto release float free bracket and packs a host of features into a compact modern design which includes AIS technology. AIS provides local rescuers precise and reliable information on the current beacon position, thereby speeding rescue operations. Additionally, Return Link Service (RLS) comforts those who activate the beacon by confirming that their distress message has been received. The inclusion of Near Field Communication (NFC) capability allows use of a smartphone app to monitor the EPIRB’s battery and other functions ensuring it is working properly. With its slim design and advanced features, the EPIRB3 Pro is ideal for a variety of mariners whether they are cruising the med, heading out through the straights for a passage, fishing, working, or sailing offshore.

Suggested Blog:  What is an EPRIB

WARNING: PROP 65

Find a dealer

SKU: 702S-03933

Categories: safeSEA

Feature bullet

406MHz & 121.5 MHz Signals

Feature bullet

Visible Light and IR Strobe

Feature bullet

MEOSAR Compatible

Feature bullet

Integrated AIS Alert

Feature bullet

Multi GNSS

Feature bullet

Return Link Service (RLS Capable)

Ocean Signal’s new EPIRB3 Pro (Emergency Positioning Radio Beacon) increases reliability and eases rescue operations with new advanced features. This new EPIRB transmits a digital mayday on 406 MHz notifying rescuers globally via satellite and broadcasts Automatic Identification System (AIS) VHF signals locally to help rescuers find the beacon faster. Once activated the EPIRB3 Pro transmits an emergency signal to the global Cospas-Sarsat satellite rescue system, and simultaneously sends out an AIS alert on VHF frequencies which can be seen immediately by any nearby vessel equipped with AIS. Return Link Service (RLS) provides visual confirmation to the user that their distress message has been received. The combination of AIS, a 121.5 MHz homing signal, and visible and infrared strobe lights speed recovery times by allowing rescuers to pinpoint the beacon location, even if it has drifted, regardless of the time of day or night. Near Field Communication (NFC) is a great new feature that allows users to monitor the EPIRB3 Pro using a free mobile smartphone App, ensuring that the battery has sufficient power and the beacon is functioning properly before heading out.



Advanced marine safety and rescue technology from Ocean Signal in the new EPIRB3 Pro with AIS combines innovative new features into a compact, ergonomically designed case that is ideal for all types and sizes of recreational and commercial vessels.



Rescue times can improve with Global activation combined with AIS Local beacon broadcast.



The EPIRB3 Pro uses the GNSS (GPS, Galileo, Glonass) positioning networks to derive its location globally. When the beacon is triggered a 406 MHz distress transmission relays this GPS EPIRB (GPIRB) position, accurate to within 100 meters, to the worldwide Cospas-Sarsat search and rescue satellite network. Ground stations connected to the satellite system receive EPIRB identification and position of deployment information so rescue operations can be coordinated and initiated. With advanced AIS technology now incorporated into the EPIRB, directly upon activation the beacon starts transmitting AIS signals so that nearby AIS equipped vessels are instantly notified of the distress situation and are provided the beacon location. AIS equipped vessels within VHF range will see a safety message on their screens that includes the MMSI vessel identification. Local vessels can start rescue and recovery operations immediately, potentially speeding recovery times and saving lives. Since an AIS target is presented on the onboard display of any nearby AIS equipped vessel, they can easily navigate directly to the EPIRB by selecting the AIS target. Even when no local vessels are available, AIS will speed recovery times by allowing maritime SAR operators to pinpoint the EPIRB’s location as they approach. The combination of Global satellite distress calling, precise GPIRB location transmission and local AIS safety messaging will greatly improve recovery time and success.



Near Field Communication (NFC) provides EPIRB diagnostics using a smartphone.



Beacon users can now check their EPIRB by connecting their smartphone to it with NFC (Near Field Communication). This technology connects a smartphone placed adjacent to the EPIRB3 by launching the free Ocean Signal Product App automatically. Full diagnostics are available in the app showing the user the current battery life, number of self-tests completed, number of GNSS tests completed, and how long the EPIRB has been activated. Detailed information including a map view that shows where a GNSS test was performed, the date and time of the test, the time it took the EPIRB to get a fix on the GNSS coordinates, number of satellites used to obtain that fix, and the accuracy of the fix are all conveniently displayed. Ocean Signal’s free Mobile App and NFC functionality provide users all the information they need to confirm their EPIRB is fully functioning and ready for deployment in case of an emergency.



Convenient Return Link Service (RLS) tells users that their distress call has been received.



EPIRBs are deployed in times of distress and rescue operations can take time especially if the vessel in distress is far offshore. The EPIRB3 Pro is equipped with Return Link Service that notifies users that the beacon distress signal has been delivered. The RLS signal is sent back through the Galileo satellite network to confirm that the distress message along with the precise EPIRB location and identifiers have been received. A simple flashing blue light tells users that the EPIRB has successfully connected through the satellite network and rescuers will be notified. Knowing that the digital mayday has been successfully communicated along with the EPIRB identification and beacon location helps those in distress remain calm while awaiting rescue operations.

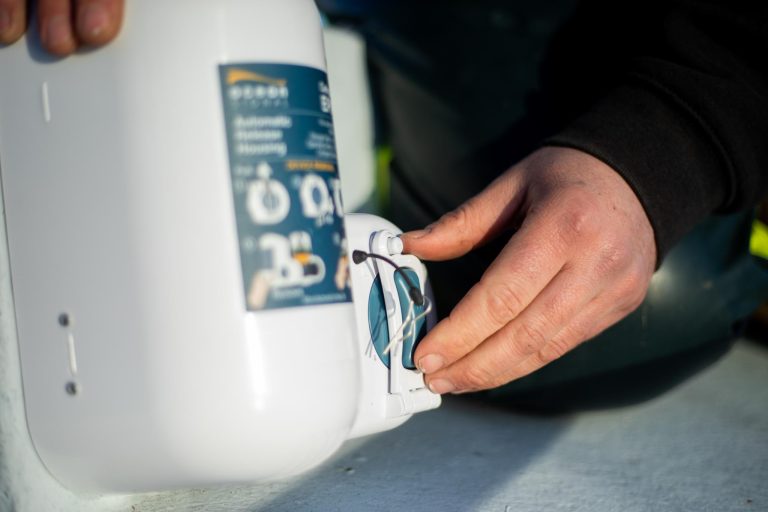

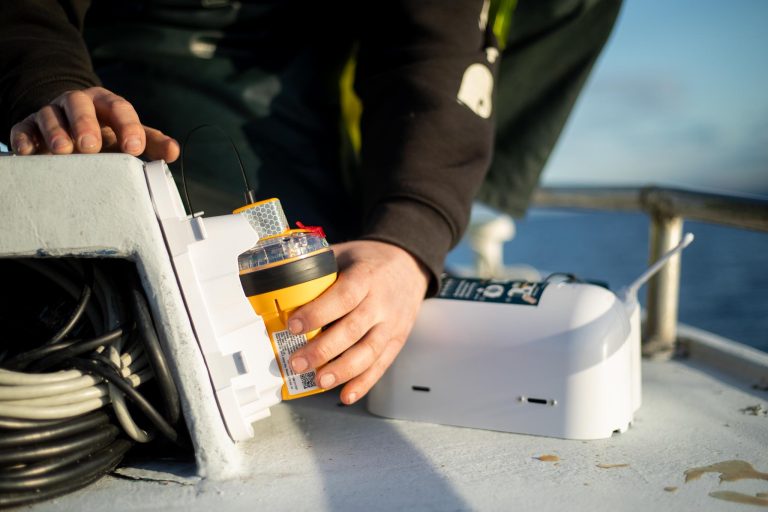

Mounting Bracket



The EPIRB3 Pro comes complete with a Category one auto release float free mounting bracket. This bracket securely stores the EPIRB3 Pro for the duration of your trip regardless of the conditions experienced throughout. It also provides the best chance of deployment in distress situations where it is difficult for a crew member to reach the EPIRB.

Ocean Signal uses advanced technology and quality manufacturing processes to develop and produce quality electronic rescue devices and other life-saving products. The new EPIRB3 Pro with its contoured profile is equally suited for both sail and powerboats. Both recreational and commercial users can be assured that the features in this new EPIRB provide the highest chance of an efficient and successful rescue no matter where they go. A host of high-tech features in the EPIRB3 Pro combine with a unique design that allow it to be used effectively on all types of vessels whether working or playing near shore, offshore, or crossing the globe.

For Category 2 Manual Release Version:  rescueME EPIRB3

Features:



  • Approved for use on SOLAS vessels
  • 30%(typ) smaller
  • AIS distress alert
  • Return Link Service (RLS)
  • Mobile connectivity utilizing Near Field Communication (NFC)
  • Free App (Apple & Android)
  • 10 year battery life
  • 48+ hours operational life
  • 5 year warranty
  • Fast accurate positioning with 72 channel GPS
  • Category I auto release float free bracket
  • Secure lanyard

406MHz Transmitter

Transmit Power (EIRP)

12W

Frequency

406.031 MHz ±1KHz

Modulation

Phase ±1.1 Radians (16K0G1D)

Encoding

Biphase L

Rate

400 bps

AIS Transmitter

Transmit Power (EIRP)

1Watt ±3dB

Frequency

161.975/162.025MHz ±500Hz

Baud Rate

9600 baud

Synchronisation

UTC

Messages

Message 1 (Position), Message 14 (Status)

Repetition Interval

8 messages/minute – Message 14 sent twice every 4 minutes

121.5 MHz Transmitter

Transmit Power (PERP)

50mW±3dB

Frequency

121.5 MHz

Modulation Duty Cycle

>35%

Modulation Factor

0.85 to 1.00

Frequency Stability

±50ppm

Duty Cycle

>98%

Visible Strobe and Night Vision Lights

Light Type

High Intensity LED & Infrared (IR)

Light Colour

White and IR

Average Intensity Visible

>1 candela

Average Intensity Night Vision Light

15mW/sr

Flash Rate

24 per minute (nom.)

Battery

Type

Lithium Iron Disulphide (LiFeS2)

Operating Time

>48Hours @ -20°C

Battery Replacement Period

10 years

GNSS Receiver

Satellite Channels

72 acquisition

Sensitivity

-167dBm

Cold Start / Re-acquisition

-148dBm / -160dBm

GNSS Antenna

Microstrip Patch

Manuals

EPIRB3 Pro User Manual (English)

Download

EPIRB3 Pro Quick Start Guide

Download

EPIRB3 Pro User Manual (French)

Download

EPIRB3 Pro User Manual (Spanish)

Download

EPIRB3 Pro User Manual (German)

Download

EPIRB3 Pro User Manual (Dutch)

Download

Certificates

Cospas Sarsat Certificate (TAC1362 – RLS)

Download

Cospas Sarsat Certificate (TAC362 – non-RLS)

Download

MED Module B

Download

MED Module D

Download

UK MER Module B

Download

UK MER Module D

Download

MED Declaration of Conformity

Download

UK Declaration of Conformity

Download

China – CCS Type Approval

Download

Limited Warranty



Your Ocean Signal product is warranted against manufacturing defects in materials and workmanship for a period of 2 years from the date of purchase and in accordance with the following conditions.



Ocean Signal will at its discretion, repair or replace faulty product free of charge excluding the cost of shipping. Proof of purchase shall be required in order for a warranty claim to be valid from the original purchaser. All claims shall be made in writing to Ocean Signal or an approved service dealer or distributor.



Ocean Signal shall not be liable to the buyer under the above warranty:



  • for any repairs or modifications carried out on the product using parts that are not supplied or approved by the manufacturer Ocean Signal including batteries and for work carried out other than by Ocean Signal or approved service dealers
  • for any part, material or accessory that is not manufactured by Ocean Signal the consumer will be covered by the guarantee / warranty offered to Ocean Signal by the manufacturer or supplier of such a component
  • for product which has not been fully paid for
  • for any product supplied by Ocean Signal to a customer under an alternative warranty or commercial agreement
  • for the cost of shipping product to and from the customer.



The Battery is only warranted until the date of expiry and provided the unit is tested in accordance with the information in the user manual as noted by the electronic witness stored within the product. The following specific item is excluded from this warranty:



  • Damage to the antenna



This warranty does not affect your statutory rights.



Extended Warranty

ENTER YOUR PRODUCT DETAILS TO GAIN THE EXTENDED WARRANTY PERIOD. Apply for free at www.oceansignal.com/warranty

By entering your product details you can add 3 years to the warranty period.



What is the difference between a Category I and a Category II EPIRB?

The difference is in how the EPIRB is deployed from the provided EPIRB bracket. A Category I beacon automatically deploys when a vessel sinks. The beacon floats free at a depth of 1.5 to 3.0m (4.9 to 13.1ft). The EPIRB can be manually activated while in its bracket or manually removed and activated. A Category II beacon is manually deployed. The EPIRB will automatically activate when removed from its bracket and comes in contact with water, or when it is still in its bracket but a person has manually pressed the power button.

Both the Category 1 and Category 2 brackets will deactivate the EPIRBs water sensor feature so if the EPIRB should get wet while in the bracket, it will not cause a false alarm. EPIRB water activation is only possible when the EPIRB has been removed from the bracket and gets wet.

What do EPIRBs do?

Emergency Position Indicating Radio Beacons (EPIRBs) are distress radio beacons that transmit location information about ships directly to Search and Rescue forces letting them know that the owner is in grave and imminent danger.

What's the difference between an AIS EPIRB and a traditional EPIRB?

AIS EPIRBs will offer both recreational and commercial users the extra reassurance that other nearby vessels equipped with an AIS Transceiver will be notified in an emergency, in addition to the beacon’s traditional capabilities to transmit a 406 MHz distress signal via the Cospas-Sarsat satellite system to contact global rescue services. Introducing the AIS locating signal ensures a signal will also be received by all vessels and aircraft equipped with AIS in the vicinity, enabling them to respond with immediate assistance.

What is RLS or Return Link Service?

Return Link Service or RLS enables newly approved EPIRB, PLB, and ELT allowing for a confirmation signal (Example: blue light flashing or message if the beacon has a digital display) that the distress signal from the beacon has been received and localized by the Cospas-Sarsat system and forwarded to government authorities for action. It does NOT mean that a rescue has yet been organized/launched, only that the distress alert has been received and routed to the appropriate government agencies. The RLS confirmation signal or message should typically be received back to the RLS beacon between 10-20 minutes as Search and Rescue is working to facilitate your rescue.

What is NFC?

Near-field communication (NFC) is a short-range wireless connectivity technology that uses magnetic field induction to enable communication between devices when they’re touched together or brought within a few centimeters of each other. The beacons data and activity is stored and when your phone is within range, the beacons NFC uses the phones power to push the data into your phone and into your Beacons Mobile App.

Will 406 MHz beacons work anywhere in the world?

Yes, 406 MHz beacons can be used anywhere in the world, including at both poles, just remember that you need a clear view of the sky (they will not work in buildings or caves, etc.)

When I register my EPIRB is the 0 in the 15 digit HEX ID (UIN) the number 0, or the letter O?

The HEX ID (UIN) consists of the numbers from 0 to 9 and the letters from A to F only. The character 0 is the number zero.

The UIN (Unique Identifier Number) is programmed into each beacon at the factory. The UIN number consists of 15 digit series of letters and numbers that make up the unique identity of the beacon. The UIN is on a white label on the exterior of the beacon. If your EPIRB has NFC and the new Ocean Signal Mobile App, you can also get your UIN by scanning the NFC antenna and pulling the beacons data into the Ocean Signal Mobile App.

Disposal of of EPIRBs and PLBs

Care should be taken when disposing of your PLB or EPIRB when it is no longer required. False alerts from discarded beacons can cause rescue authorities to expend much time and effort in locating discarded EPIRBs or PLBs that have accidentally activated. Please ensure that care is taken to completely deactivate the beacon and advise the registration authority that the beacon is no longer in service.

It is recommended to remove the battery from the beacon by removing the case lid. Dispose of the battery in accordance with local waste regulations. Please note that Ocean Signal beacons are not user serviceable and removing the lid will invalidate the warranty.
